Elite Tandem Pantry Storage Unit
This ELITE Galley open-out pantry is the latest in storage design for modern kitchens. Â It has baskets attached to the opening door and also pulls out baskets from the rear of the pantry cavity. Â Therefore it maximises both space utilisation and access to your stored items. It's designed for existing hinged cabinets with a left- or right-opening door, compatible with hinges that open up to 140 degrees.
This pull out pantry unit has baskets with quality veneer timber base and safety glass sides, making it an elegant fixture for your kitchen. Â Also, unlike some other wire basket pull-out units, where small items cannot stand easily on the wire supports, the safety glass walls and ant-slip mats ensure everything stays in place.
Note: Includes internal hardware only. Â Does not include cabinet or door.
This open out pantry features two separated units:
- Door mounted shelf baskets for convenient access to frequently accessed smaller items
- Pull-out baskets on a frame to give you full access to the back of the pantry for larger items
Â
Spacious Kitchen Pantry Organiser
- LUXURIOUS DESIGN - Features baskets with quality veneer timber base and optional anti-slip mat, and safety glass sides that provide high visibility of your items; the Galley style is the most luxurious design in the ELITE pantry range
- ADJUSTABLE - The adjustable frame allows for simple installation into standard and non-standard cabinet heights; customise the distance between basket heights per your demand
- CONVENIENT - The open-out design provides easy access to all items on your pantry shelves - rear baskets get pulled out when opened
- FULL ACCESS - Can open-out up to 140 degrees (requires appropriate cabinet door hinges)
- STRONG - Holds 5kg per door mounted basket and 10kg per large rear basket (total of 50kg capacity for the whole unit)
- SMOOTH RUNNERS - Ensures a smooth transfer from back to front and to avoid the door to slam shut
- RETROFIT OR INSTALL NEW - Forget about fixed pantries with fixed shelves—convert your existing pantry with this unit, or have it installed in your new kitchen
- QUALITY - Premium materials and built that comes with a 5-year warranty
Specifications
| Â |
Suits Standard 450mm Wide Cabinet (External) |
Suits Standard 600mm Wide Cabinet (External) |
| Required Cabinet Width (Internal) |
Minimum of 418mm |
Minimum of 568mm |
| Required Cabinet Depth (Internal) |
Minimum of 500mm |
Minimum of 500mm |
| Required Cabinet Height (Internal) |
Low option: Adjustable 1650mm to 1950mm |
Low option: Adjustable 1650mm to 1950mm |
| Basket Style |
Quality veneer timber base with safety clear glass sides (includes optional anti-slip mat) |
Quality veneer timber base with safety clear glass sides (includes optional anti-slip mat) |
| Number of Baskets |
12 |
12 |
| Basket Dimension |
Door mounted - W 328mm x D 141mm x H 80.4mm |
Door mounted - W 478mm x D 141mm x H 80.4mm |
| Runner Type |
Smooth-glide steel balling bearing runners |
Smooth-glide steel balling bearing runners |
| Load Capacity (kg) |
Max. 50kg total per unit |
Max. 50kg total per unit |
| Installation |
Unit can be left or right side mounted using the included brackets |
Unit can be left or right side mounted using the included brackets. |
| Max. Opening of Cabinet Door Hinge |
140 degrees |
140 degrees |
| Warranty |
5 years |
5 years |

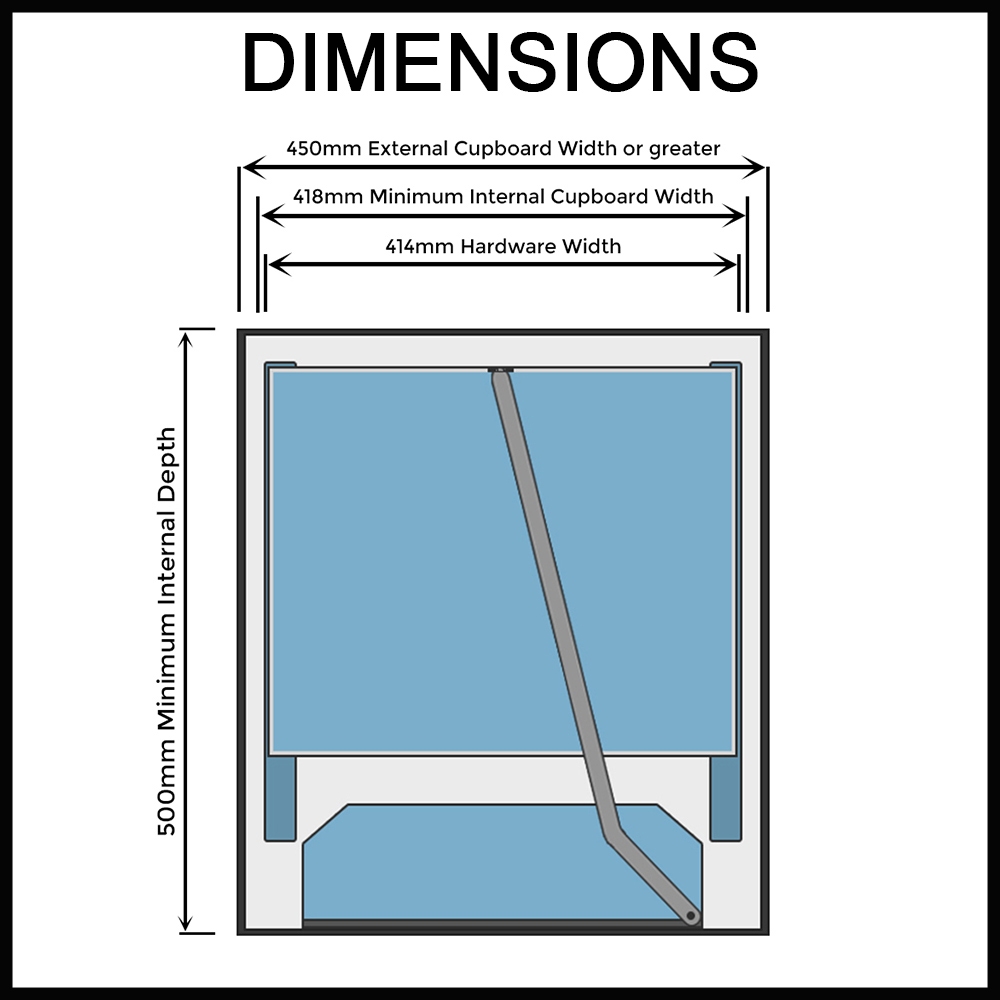

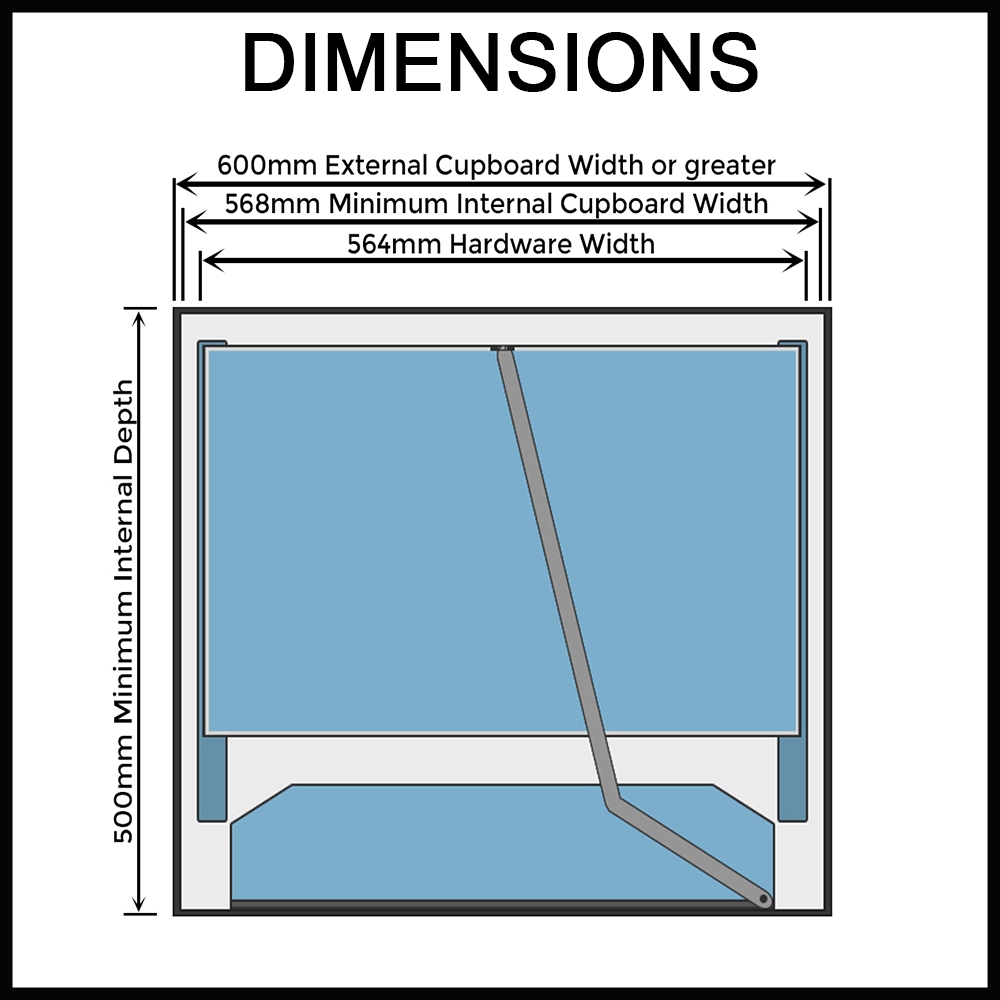

Dimensions
For 450mm
For 600mm
Installation
The ingenious design of this unit means it can be mounted to open out to the left or right. Â A height-adjustable frame is installed inside your cupboard and brackets are attached to the inside of the cupboard door to attach the shelf baskets to. Â
Click on the icon below to download the installation manual for this product.
Warranty
5 year manufacturer warranty against manufacturing faults. Conditions apply - see product documentation and Returns and Warranties Policy.
