This ELITE Provedore pull-out pantry is the latest in storage design for modern kitchens. It has adjustable height trays so you can configure your pantry to suit your needs. Therefore it maximises both space utilisation and access to your stored items. Select from units designed for an existing 300mm, 400mm and 450mm wide standard cabinet. Each pantry is supplied with 6 baskets. You can choose to use some or all of the supplied baskets.
Kitchen Cupboard Pantry with Soft Close Technology
- PREMIUM DESIGN - Features shelves with a superior chrome finish with quality timber base and optional anti-slip mat, making the Provedore range exceptional storage for your kitchen
- RETROFIT OR INSTALL NEW - Forget about fixed pantries with fixed shelvesconvert your existing pantry with this unit, or have it installed in your new kitchen
- ADJUSTABLE - The adjustable frame allows for simple installation into standard and non-standard cabinet heights
- CONVENIENT - Moveable shelf baskets (up to 6) mean you can create space for small and tall items. Note: Shelf baskets cannot be installed above the horizontal crossbar in the frame
- ACCESSIBLE - Pull-out design gives you full access to the back of the pantry shelves
- SMOOTH RUNNERS WITH SOFT CLOSE - Using the latest technology, the runners ensure a smooth transfer from back to front, adding in the soft-close function and you cannot go wrong
- HEAVY LOAD CAPACITY - Featuring a heavy 5kg load capacity per shelf and a maximum of 35kgs for the unit

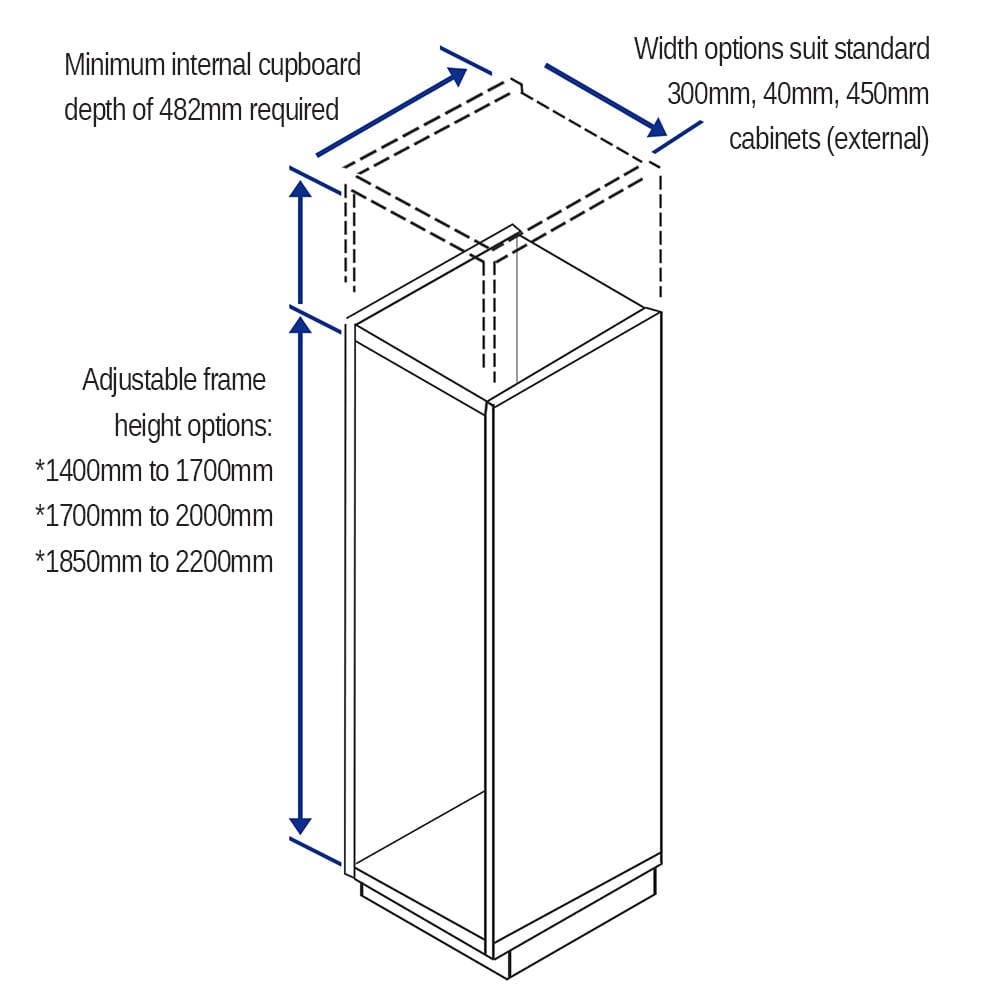

Specifications
|
Cabinet Width |
Suits Standard 300mm Cabinet (External) Min 260mm internal width |
Suits Standard 400mm Cabinet (External) Min 360mm internal width |
Suits Standard 450mm Cabinet (External) Min 410mm internal width |
|
Tray Dimensions |
W: 250mm x D:435mm x H:81mm |
W: 350mm x D:435mm x H:81mm |
W: 400mm x D:435mm x H:81mm |
|
Tray Extension |
Full: 466mm extension from cabinet |
Full: 466mm extension from cabinet |
Full: 466mm extension from cabinet |
|
Tray Material |
Veneer timber base with chrome railings (includes optional anti-slip mat) |
Veneer timber base with chrome railings (includes optional anti-slip mat) |
Veneer timber base with chrome railings (includes optional anti-slip mat) |
|
Runner Type |
Soft Close, fully extendable |
Soft Close, fully extendable |
Soft Close, fully extendable |
|
Frame Depth |
480mm (minimum internal cupboard depth of 482mm) |
480mm (minimum internal cupboard depth of 482mm) |
480mm (minimum internal cupboard depth of 482mm) |
|
Frame Height |
Low (fits 5-6 baskets): 1400mm to 1700mm
|
Low (fits 5-6 baskets): 1400mm to 1700mm
|
Low (fits 5-6 baskets): 1400mm to 1700mm
|
|
Load Capacity (kg) |
Max. 35kg in total - 5kg / shelf |
Max. 35kg in total - 5kg / shelf |
Max. 35kg in total - 5kg / shelf |
|
No. of Baskets Included |
6 (unused basket/s for the Low and High frames can be kept as spare/s) |
6 (unused basket/s for the Low and High frames can be kept as spare/s) |
6 (unused basket/s for the Low and High frames can be kept as spare/s) |
|
Warranty |
5 years |
5 years |
5 years |
Installation
The unit attaches to a heavy duty runner which mounts to the floor of your cupboard. Your cupboard door is affixed to the unit so a gentle pull brings the entire pantry out. Your pull-out pantry will be easily integrated into your kitchen.
Note: This is the internal hardware only, no cabinetry or door provided.
Click on the book to download the instruction manual (PDF) for this product.
Warranty
5 year manufacturer warranty against manufacturing faults. Conditions apply - see product documentation and Returns and Warranties Policy.
